Visualizer

Make your classrooms innovative using the best technology tools and learning facilities. In today’s dynamic education system, it’s a challenge to grab and retain the attention of students. Visualizer (document camera)simplifies the learning process by reducing the distance of words through interesting images, descriptions and videos and help teachers get the due attention of students. Display the book content and 3D objects on projection screen with the help of visualizer and overcome all teaching challenges creatively.

Infralab transforms an ordinary bookish classroom into a digital studio that empowers teachers and students with an unlimited access to engaging content. We offer a variety of visual presenters that take magnified images of book pages and other objects and reflect those on projection screens. The instructor can also save these in the computer library to refer it later (if required).

Visualizer makes your lessons simple, easy to comprehend, interesting, effective and engaging. The smart classroom technology promises concept clarity to students and intensify their thinking skills. Deliver high quality presentations in classrooms, auditoriums and offices with our high performing visual presenter.

Explore Infralab’s different models of visual presenters here.

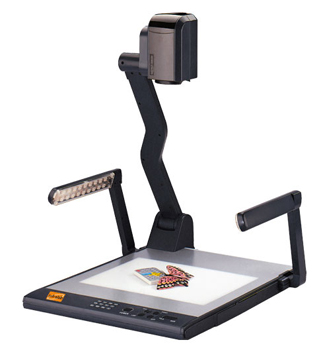

Desktop Gooseneck
Model SCI - 009 SCI - 063
Sensor 1/3" CMOS 1/3" CMOS
Total pixel 2 Megapixel 2 Megapixel
Zoom 9x optical, 12x digital 9x optical, 12x digital
INPUT TERMINALS 12 12/25
Shooting area "Max: 13.5""x10.6"" (340mmx270mm)" "Max: 13.5""x10.6"" (340mmx270mm)"
Focus Auto/manual Auto/manual
Native output signal SXGA(1280x1024) SXGA(1280x1024)
Converted output signal XGA,720P XGA
Resolution (Horizontal) ≥750 TV lines ≥ 750 TV lines
White balance Auto/manual Auto/manual
Color adjustment Yes Yes
Brightness adjustment Yes Yes
Image capture Yes, 18 volatile images Yes, 12 volatile images
Video recording Yes Yes
Image mirror Yes Yes
Image rotation 180(activation) 180(activation)
Image split Yes Yes
Image freeze Yes Yes
Picture in picture -- --
Title freeze -- --
Text mode Yes Yes
Black and white/colorconversion -- --
Positive/negative conversion Yes --
OSD Yes Yes
INPUT TERMINALS
VGA x2 x1
AUDIO x2 --
MICROPHONE x2 --
HDMI -- --
OUTPUT TERMINALS
HDMI -- --
DVI -- --
VGA X2 X1
VIDEO -- --
AUDIO X1 --
LAN -- --
OTHER TERMINALS
USB2.0 x1(USB camera) x1(USB camera)
USB driver and software Windows XP/Vista, Mac OS10.4 or above. Driver plug and play Windows XP/Vista, Mac OS10.4 or above. Driver plug and play
RS232(computer controllable) -- --
SD slot card -- --
Remote control Yes(360°controllable) Yes(360°controllable)
Kensington lock -- Yes
Built-in LCD screen -- --
Light source Arm light×2(LED)A4 size lightbox(LED) Embedded LED lamp on Arm
Dimensions "Setup:18.7""×16.7""×22.3"" Folded: 15.9""×16.7""×6.1""" " Folded: 6.7""×7.2""×13.5"" (170mm×183mm×343mm) Setup:6.7""×19.1""×13.5"" (170mm×485mm×343mm)"
Power supply 12V DC power adapter 12V DC power adapter
Weight(net) 11.02lbs(5kg) 3.97lbs(1.8kg)
  Portable

Model SCI - 018 SCI - 171 SCI - 405
Sensor 1/3" CMOS 1/2.5" CMOS 1/3" CMOS
Total pixel 2 Megapixel 5 Megapixel 2 Megapixel
Zoom 9x optical, 16x digital 9x optical, 4x digital 9x optical, 12x digital
INPUT TERMINALS 12/25 12/25 15
Shooting area "Max: 13.5""x10.6""
(340mmx270mm) "
"Max: 13.5""x10.6""
(340mmx270mm) "
"Max: 13.5""x10.6""
(340mmx270mm) "
Focus Auto/manual Auto/manual Auto/manual
Native output signal SXGA(1280x1024) SXGA(1280x1024) SXGA(1280x1024)
Converted output signal XGA,720P 1080P,720P, UXGA XGA, 720P
Resolution (Horizontal) ≥ 750 TV lines ≥ 800 TV lines ≥ 750 TV lines
White balance Auto/manual Auto/manual Auto/manual
Color adjustment Yes Yes Yes
Brightness adjustment Yes Yes Yes
Image capture Yes,200 NON-volatile images Yes, 8 volatile images Yes, 400 NON-volatile images
Video recording Yes Yes, with sound Yes, with sound
Image mirror Yes Yes Yes
Image rotation 90, 180, 270(activation) 180(activation) 90, 180, 270 (frozen)
Image split Yes Yes Yes
Image freeze Yes Yes Yes
Picture in picture Yes -- Yes
Title freeze Yes --
Text mode -- Yes Yes
Black and white/colorconversion Yes Yes Yes
Positive/negative conversion Yes Yes Yes
OSD Yes Yes Yes
VGA x1 x1 x1
AUDIO x1 x1 x1
MICROPHONE -- -- --
HDMI -- -- --
OUTPUT TERMINALS
HDMI -- i3530H x 1 --
DVI x1 i3530 x 1 x1
VGA x1 x1 x2
VIDEO x1 -- --
AUDIO x1 x1 x1
LAN -- -- --
OTHER TERMINALS
USB2.0 Slave×1(USB camera/Build-in image download) Slave×1(USB camera/Build-in image download) Host×1(Mouse, Memory stick) Slave×1(USB camera/Build-in image download)
USB driver and software Windows XP/Vista, Mac OS10.4 or above. Driver plug and play Windows XP/Vista, Mac OS10.4 or above. Driver plug and play Windows XP/Vista, Mac OS10.4 or above. Driver plug and play
RS232(computer controllable) x1 x1 x1
SD slot card x1 -- --
Remote control Yes(360°controllable) Yes(360°controllable) Yes(360°controllable)
Kensington lock Yes Yes Yes
Built-in LCD screen -- Yes Built-in 7" LCD touch screen
Light source Embedded LED lamp on Arm Embedded LED lamp on Arm Embedded LED lamp on Arm
Dimensions "Folded:12.6""×6.6""×3.7""
(320mm×168mm×93mm)
Setup:19.7""×6.6""×19.3""
(500mm×168mm×490mm)"
"Folded:12.6""×6.6""×3.7""
(320mm×168mm×93mm)
Setup:19.7""×6.6""×19.3""
(500mm×168mm×490mm)"
"Folded:12.6""×7.5""×5.6""
(320mm×191mm×142mm)
Setup:19.7""×7.5""×15.7""
(500mm×191mm×400mm)"
Power supply 12V DC power adapter 12V DC power adapter 12V DC power adapter
Weight(net) 5.51lbs(2.5kg) 5.51lbs(2.5kg) 6.17lbs(2.8kg)
Wireless
Model --
Sensor
Total pixel
Zoom
INPUT TERMINALS
Shooting area
Focus
Native output signal
Converted output signal
Resolution (Horizontal)
White balance
Color adjustment
Brightness adjustment
Image capture
Video recording
Image mirror
Image rotation
Image split
Image freeze
Picture in picture
Title freeze
Text mode
Black and white/colorconversion
Positive/negative conversion
OSD
INPUT TERMINALS
VGA
AUDIO
MICROPHONE
HDMI
OUTPUT TERMINALS
HDMI
DVI
VGA
VIDEO
AUDIO
LAN
OTHER TERMINALS
USB2.0
USB driver and software
RS232(computer controllable)
SD slot card

Remote control
Kensington lock
Built-in LCD screen
Light source
Dimensions
Power supply
Weight(net)

SCI - 126
1/3" CMOS
2 Megapixel
9x optical, 20x digital
30
"Max: 13.5""x10.6""
(340mmx270mm) "
Auto/manual
SXGA(1280x1024)
XGA,720P,1080P
≥ 750 TV lines
Auto/manual
--
Yes
Yes, on-board 400 images
Yes(SD card)
Yes
90, 180, 270 (frozen)
Yes
Yes
Yes
Yes
--
--
Yes
Yes

x1
--
x1(embedded)
x1

x1
--
x1
--
x1
x1

Host×2,Slave×1
Windows XP/Vista, Mac OS10.4 or above. Driver plug and play
--
x1

--
--
--
Arm light×2(LED)A4 size lightbox(LED)
"Folded: 15.9""×16.7""×6.1""
(404mm×424mm×155mm) Setup:18.7""x16.7""x22.3""
(475mm×424mm×566mm)""
12V DC power adapter
11.02lbs(5kg)

SCI - 234
1/3" CMOS
2 Megapixel
9x optical,20x digital
30
"Max: 13.5""x10.6""
(340mmx270mm) "
Auto/manual
SXGA(1280x1024)
XGA,720P,1080P
≥ 750 TV lines
Auto/manual
Yes
Yes
Yes, on-board 400 images
Yes(SD card)
Yes
90, 180, 270 (frozen)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes

x1
--
x1(embedded)
x1

--
x1
--
--
x1


Host×2,Slave×1
Windows XP/Vista, Mac OS10.4 or above. Driver plug and play
--
x1

Yes(360°controllable)
Yes
--
Embedded LED lamp on Arm
" Folded: 6.7""×7.2""×13.5""
(170mm×183mm×343mm)
Setup:6.7""×19.1""×13.5""
(170mm×485mm×343mm)"
12V DC power adapter
3.97lbs(1.8kg)

SCI 9000
1/3" CMOS
3 Megapixel
9x optical,20x digital
30
"Max: 13.5""x10.6""
(340mmx270mm) "
Auto/manual
SXGA(1280x1024)
XGA,720P,1080P
≥ 750 TV lines
Auto/manual
Yes
Yes
Yes, on-board 400 images
Yes(SD card)
Yes
90, 180, 270 (frozen)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes

x1
--
x1(embedded)
x1

x1
--
x1
--
x1
x1

Host×2,Slave×1
Windows XP/Vista, Mac OS10.4 or above. Driver plug and play
--
x1

Yes(360°controllable)
Yes
Yes
Top Arm light×1 (LED)A4 size lightbox (LED)
" Folded: 19.4""×14.6""×4.7""
(493mm×371mm×120mm)
Setup:19.4""×14.6""×4.7""
(493mm×371mm×552mm)"
12V DC power adapter
13.23lbs(6kg)
