Visual Presenter - Desktop Type Price Online

Visual Presenter

Infralab offers a prime range of visual presenters; that is also known by the names document camera, visualiser and digital overhead. In recent years, when technology has grown up by leaps and bounds; the demand for visual presenter in classrooms have raised to newer levels.

INFRALAB VISUAL PRESENTER MODELS:

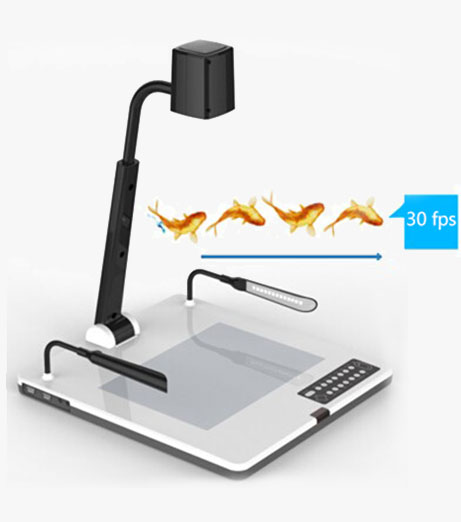

visual presenter 1

Visual Presenter is a modern way of presenting “the content with visual display” for classrooms, training rooms, video conferencing (share live-images with conference participants), boardroom, medical research (experiments or research), science laboratory (to show experiments to others), and presentations (with images to ensure indulgence and interaction). The device just requires an output unit, which can be LCD Screen, Projector or a basic Computer Monitor, to display pictures of 2D or 3D objects. To right away start, one just has to place the object (or anything) under the document camera lens.


Features of Infralab Visual Presenter:

  • Live Recording of Experiments
  • On-board Storage of Pictures and Video Files
  • Option for Saving, Sharing and Re-Usage
  • Easy Adaptation with Microscope
  • Ports to Connect with Projector, Computer, Interactive Whiteboard and Digital Podium Independent of Computer
visual presenter 2
  • Easy Installation and User-friendly
  • Remote control to function from a short distance

In addition to the above features, another important aspect of visual presenter is the video signal that can be sent with an HDMI cable. It stands for high definition multimedia interface. The HDMI connection displays the best image, supports any computer video format.

Working of Visual Presenter

The document camera’s lens works by focusing light from the device itself and input on the document camera’s image sensors. The image which is shown on the display screen is actually made up of number of pixels which make a picture. The high resolution of the images is due to the substantial pixels available to create smooth images.


Utility Characteristics:

visual presenter 3
  • Infralab Visual Presenters have internal memory for storing images and the external image saving option that allows you to transfer extra images from visual presenter to a computer using a USB cord.
  • The camera can be rotated to focus on the object at different angles by pressing a button without moving the object.
  • Document camera is very useful to share images/picture of printed documents or 3-D objects while video conferencing of two or more individuals or groups in different locations.
  • Pictures and live video recording using the document camera fills the class with new energy and zeal to achieve excellence through modern learning.

Infralab provides visual presenters in India as well as other Asian, African, American and Australian Countries. If you are keen to know more about our products, drop mail at infralabindia@gmail.com or call us at +91-9813232101.


visual presenter 4

Explore More Infralab Models of visual presenters here:

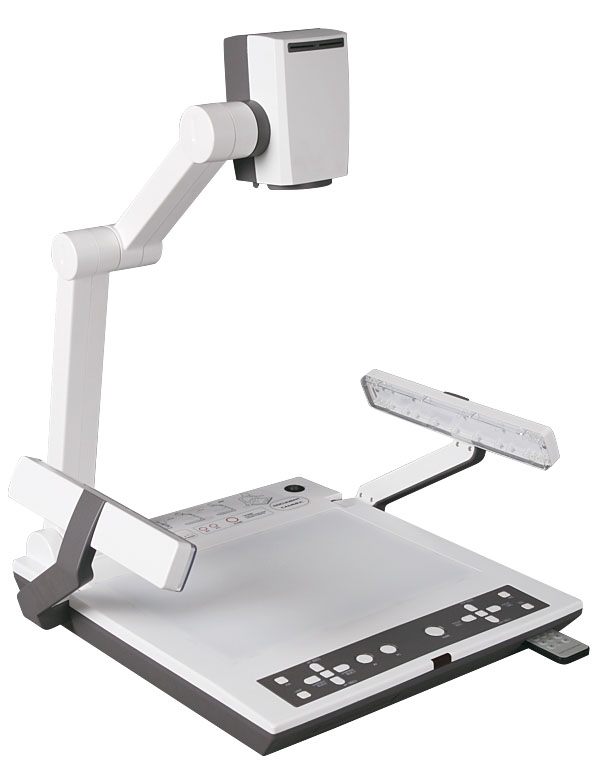

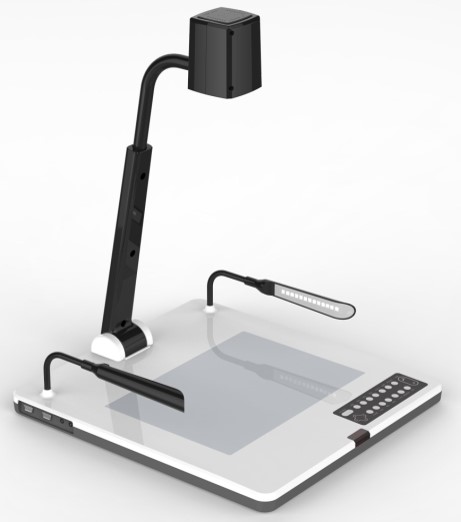

Desktop
ModelVPD945VPD946
Sensor 1/3" CMOS1/3" CMOS
Total pixel2 Megapixel2 Megapixel
Zoom9x optical, 12x digital9x optical, 12x digital
INPUT TERMINALS1230
Shooting area "Max: 13.5""x10.6"" (340mmx 270mm)""Max: 13.5""x10.6"" (340mmx 270mm)"
FocusAuto /manualAuto /manual
Native output signalSXGA (1280x1024) SXGA (1280x1024)
Converted output signal XGA,720P XGA, 720P ,1080P
Resolution (Horizontal) ≥750 TV lines ≥ 750 TV lines
White balance Auto /manual Auto /manual
Color adjustment Yes Yes
Brightness adjustment Yes Yes
Image capture Yes, 18 volatile images Yes, on-board 400 images
Video recording Yes Yes (SD CARD)
Image mirror Yes Yes
Image rotation 180 (activation) 90, 180, 270(frozen)
Image split Yes Yes
Image freeze Yes Yes
Picture in picture -- Yes
Title freeze -- Yes
Text mode Yes --
Black and white /color conversion -- --
Positive /negative conversion Yes Yes
OSD Yes Yes
INPUT TERMINALS
VGA x2 x1
AUDIO x2 --
MICROPHONE x2 x1 (embedded)
HDMI -- x1
OUTPUT TERMINALS
HDMI -- --
DVI -- --
VGA X2 X1
VIDEO -- --
AUDIO X1 --
LAN -- x1
OTHER TERMINALS
USB2.0 x1(USB camera) Host x2, Slave x1
USB driver and software Windows XP /Vista, Mac OS10.4 or above. Driver plug and play Windows XP /Vista, Mac OS10.4 or above. Driver plug and play
RS232 (computer controllable) -- --
SD slot card -- x1
Remote control Yes(360° controllable) --
Kensington lock -- Yes
Built-in LCD screen -- --
Light source Arm light×2 (LED)A4 size lightbox (LED) Arm light×2 (LED)A4 size lightbox (LED)
Dimensions "Setup:18.7" "×16.7" "×22.3"" Folded: 15.9" "×16.7" "×6.1""" "Folded: 15.9" ×16.7"× 6.1" (404mm× 424mm× 155mm) Setup:18.7" x16.7" x22.3" (475mm× 424mm× 566mm)"
Power supply 12V DC power adapter 12V DC power adapter
Weight (net) 11.02lbs (5kg) 11.02lbs (5kg)

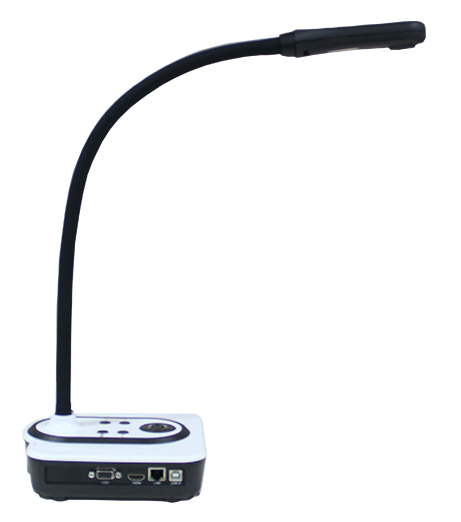

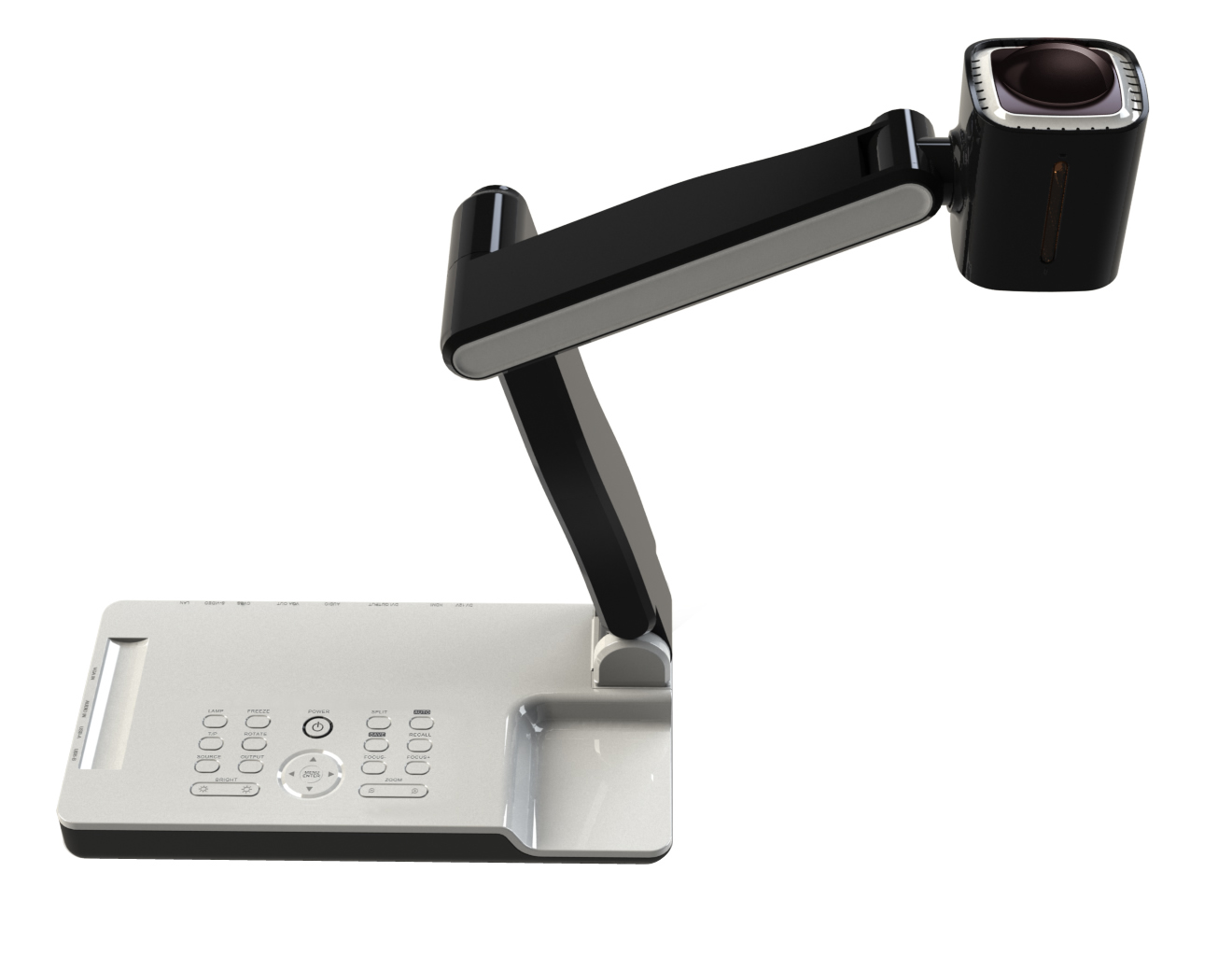

Portable
Model VPP350 VPP351
Sensor 1/3" CMOS 1/2.5" CMOS
Total pixel 2 Megapixel 5 Megapixel
Zoom 9x optical, 16x digital 9x optical, 4x digital
INPUT TERMINALS 12/25 12/25
Shooting area "Max: 13.5" "x10.6""
(340mmx 270mm) "
"Max: 13.5" "x10.6""
(340mmx 270mm) "
Focus Auto /manual Auto /manual
Native output signal SXGA (1280 x1024) SXGA (1280 x1024)
Converted output signal XGA, 720P 1080P, 720P, UXGA
Resolution (Horizontal) ≥ 750 TV lines ≥ 800 TV lines
White balance Auto /manual Auto /manual
Color adjustment Yes Yes
Brightness adjustment Yes Yes
Image capture Yes, 200 NON-volatile images Yes, 8 volatile images
Video recording Yes Yes, with sound
Image mirror Yes Yes
Image rotation 90, 180, 270 (activation) 180 (activation)
Image split Yes Yes
Image freeze Yes Yes
Picture in picture Yes --
Title freeze Yes --
Text mode -- Yes
Black and white /color conversion Yes Yes
Positive /negative conversion Yes Yes
OSD Yes Yes
VGA x1 x1
AUDIO x1 x1
MICROPHONE -- --
HDMI -- --
OUTPUT TERMINALS
HDMI -- i3530H x 1
DVI x1 i3530 x 1
VGA x1 x1
VIDEO x1 --
AUDIO x1 x1
LAN -- --
OTHER TERMINALS
USB2.0 Slave×1 (USB camera /Build- in image download) Slave×1 (USB camera /Build- in image download)
USB driver and software Windows XP/Vista, Mac OS10.4 or above. Driver plug and play Windows XP/Vista, Mac OS10.4 or above. Driver plug and play
RS232 (computer controllable) x1 x1
SD slot card x1 --
Remote control Yes (360° controllable) Yes (360° controllable)
Kensington lock Yes Yes
Built -in LCD screen -- Yes
Light source Embedded LED lamp on Arm Embedded LED lamp on Arm
Dimensions "Folded: 12.6" "×6.6" "×3.7""
(320mm ×168mm ×93mm)
Setup: 19.7" "×6.6" "×19.3""
(500mm ×168mm× 490mm)"
"Folded: 12.6" "×6.6" "×3.7""
(320mm ×168mm ×93mm)
Setup:19.7" "×6.6""× 19.3""
(500mm ×168mm ×490mm)"
Power supply 12V DC power adapter 12V DC power adapter
Weight (net) 5.51lbs (2.5kg) 5.51lbs (2.5kg)

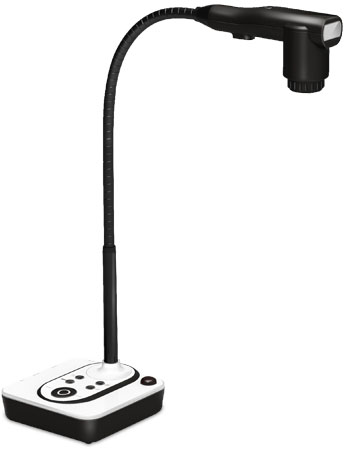

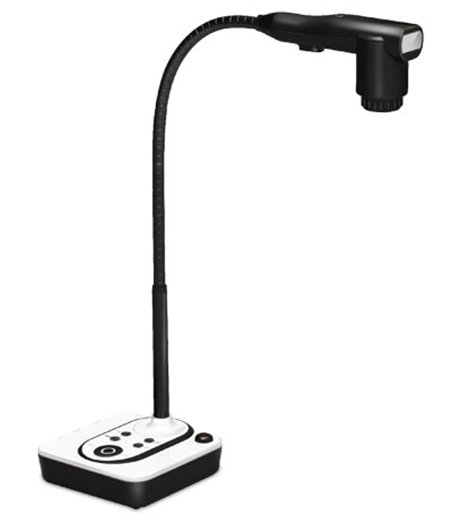

Gooseneck
Model VPG550 VPG551
Sensor 1/3" CMOS 1/3" CMOS
Total pixel 2 Megapixel 3 Megapixel
Zoom 9x optical, 12x digital 9x optical ,20x digital
INPUT TERMINALS 12 /25 30
Shooting area "Max: 13.5" "x10.6""
(340mm x270mm) "
"Max: 13.5" "x10.6""
(340mm x270mm) "
Focus Auto /manual Auto /manual
Native output signal SXGA (1280 x1024) SXGA (1280 x1024)
Converted output signal XGA XGA, 720P, 1080P
Resolution (Horizontal) ≥ 750 TV lines ≥ 750 TV lines
White balance Auto /manual Auto /manual
Color adjustment Yes Yes
Brightness adjustment Yes Yes
Image capture Yes, 12 volatile images Yes, on-board 400 images
Video recording Yes Yes(SD card)
Image mirror Yes Yes
Image rotation 180 (activation) 90, 180, 270 (frozen)
Image split Yes Yes
Image freeze Yes Yes
Picture in picture -- Yes
Title freeze -- Yes
Text mode Yes Yes
Black and white /colorconversion -- Yes
Positive /negative conversion -- Yes
OSD Yes Yes
INPUT TERMINALS
VGA x1 x1
AUDIO -- --
MICROPHONE -- x1 (embedded)
HDMI -- --
OUTPUT TERMINALS
HDMI x1
DVI -- --
VGA x1 x1
VIDEO -- --
AUDIO -- --
LAN -- x1
OTHER TERMINALS
USB2.0 x1 (USB Camera) Host×2, Slave×1
USB driver and software Windows XP/Vista, Mac OS10.4 or above. Driver plug and play Windows XP/Vista, Mac OS10.4 or above. Driver plug and play
RS232 (computer controllable) -- --
SD slot card -- x1
Remote control Yes (360° controllable) Yes (360° controllable)
Kensington lock Yes Yes
Built-in LCD screen -- --
Light source Embedded LED lamp on Arm Embedded LED lamp on Arm
Dimensions " Folded: 6.7" "×7.2" "×13.5""
(170mm ×183mm ×343mm)
Setup:6.7" "×19.1" "×13.5""
(170mm ×485mm ×343mm)"
" Folded: 6.7" "×7.2" "×13.5""
(170mm ×183mm ×343mm)
Setup:6.7" "×19.1" "×13.5""
(170mm ×485mm ×343mm)"
Power supply 12V DC power adapter 12V DC power adapter
Weight (net) 3.97 lbs(1.8kg) 3.97 lbsss(1.8kg)
